The product is intended for easy cleaning of Aluminum (ALIKOBAND), Granite, and other composite materials on the exterior of buildings. Double motorized or drum platforms can be used according to the project and request. The distance of the work platform to the front can be adjusted with the hydraulic piston lift, which can be applied according to the project and request, and the platform can be parked on the terrace. Production and assembly are carried out in accordance with European norms and EN 1808 standards.
Technical specifications

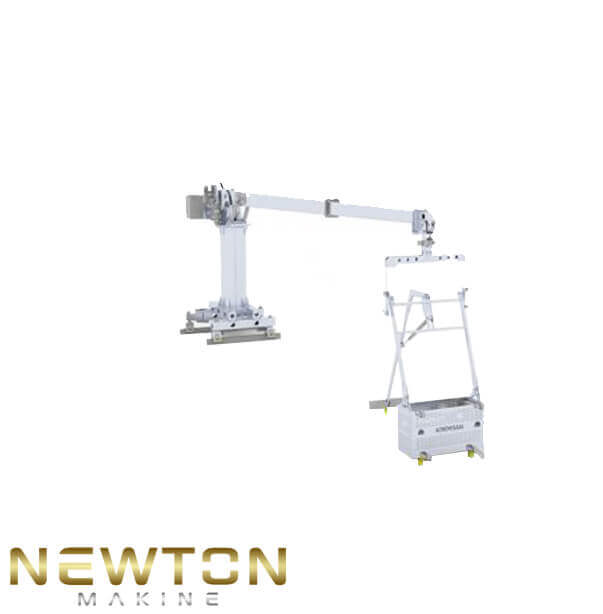

Model: NST50
Type: Fixed Single Boom Heavy Duty Facade Cleaning Lift (platform)
Power: 4-15 KW
Rope: 4 pieces of 8 mm
Voltage: 380 volts
Main Body Rotation: 4 Meter / minute 1 x 0.25 KW
Divider Arm Rotation: 4 Meters / Min. 1 x 0.12 KW
Vertical Speed: 8 Meters / min 1 unit 1.1 KW
Horizontal Speed: 4 Meters / minute 2 x 0.25 KW
Hydraulic Lift: 4 Meter / minute 1 unit 1.5 KW
Safety System: Safety Brake and Limit Stoppers
Weight: 5000 kg (Depends on Boom Length and Project)
Rail Suspension: 1300 / 1500 / 1700 mm
Working Capacity: 240 kg
