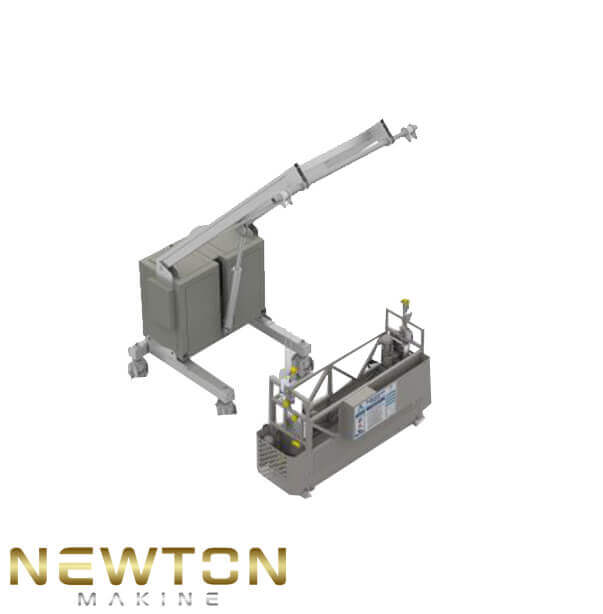

According to the building facade, the boom length can be manufactured between 2.5 meters and 5 meters. Double motorized or drum platforms can be used according to the project and request. It performs horizontal movement with a double rail or a single rail on the concrete surface. Optionally, a control system can be applied for cable control or steel rope. NST40 series facade cleaning system is preferred in buildings up to 200 meters high.
Technical specifications
Model: NST40
Type: Double boom light type facade cleaning elevator (platform)
Platform Used: Single or Double Motorized Platform NST10, NST10 MAJOR
Power: 3-5 KW
Rope: 4 pieces of 8 mm
Voltage: 380 volts
Control: In-Steel Cable
Vertical Speed: 8 Meters / min 1 unit 1.1 KW
Horizontal Speed: 4 Meters / minute 2 x 0.25 KW
Hydraulic Lift: 4 Meter / minute 1 unit 1.5 KW
Safety System: Safety Brake and Limit Stoppers
Weight: 2000 kg (Depends on Boom Length and Project)
Rail Suspension: 1300 / 1500 / 1700 mm
Working Capacity: 240 kg
