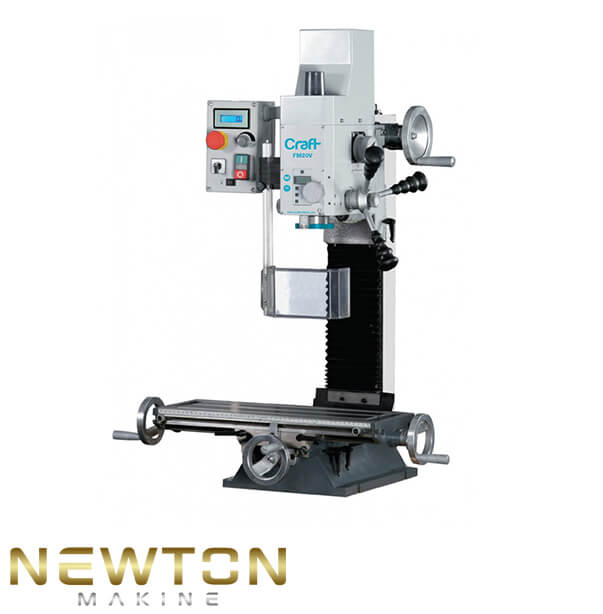

FM20V Desktop Milling Machine

With its 20 mm end mill capacity and 63 mm surface usage capacity, it overcomes the toughest conditions. You can use the table dimensions as 500 x 180 mm. The milling cutting movement occurs when the tool rotates around itself and the piece moves forward.

FM20V Desktop Milling Machine Technical Specifications
Motor Power: 750 W, 230V
Drilling Capacity: 16 mm
End Mill Capacity: 20 mm
Face Milling Capacity: 63 mm
Table Dimensions: 500×180 mm
X Axis Travel: 280 mm
Y Axis Travel: 175 mm
Z Axis Travel: 270 mm
T Slot Dimensions: 3×12 mm
Shaft Taper: MK2
Spindle Speed: 50-2250 rpm
Level: 2 / Variator
Head Rotation Angle: ± 45°
Distance Between Shaft and Column: 185 mm
Machine Dimensions (LxWxH): 750x560x930 mm
Net Weight: 105 Kg
