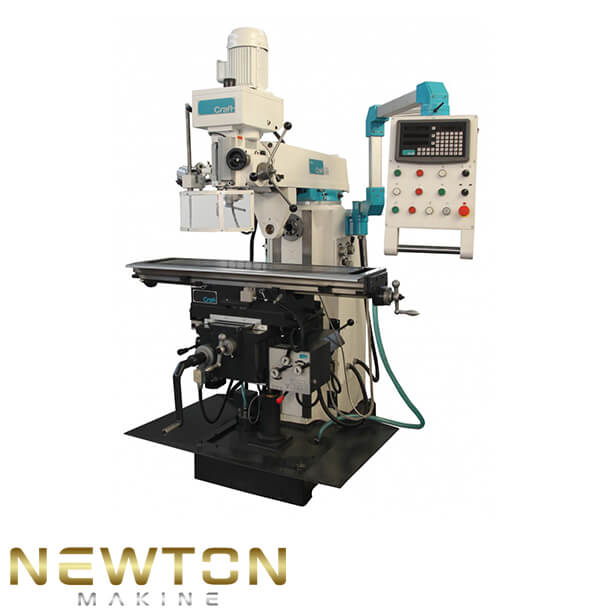

FR4 Universal Molder Milling Machine

FR4 Universal molding milling machine has a durable body that can operate with vertical and horizontal motor power of 2.2 kW – 380 volts and has been produced in accordance with CE norms.

Technical Specifications
Motor Power: Vertical: 2.2 KW, Horizontal: 2.2 KW
Voltage: 400V (Three-phase)
Cooling Pump Power: 90 W
Table Dimensions: 1270×320 mm
X Axis Travel: 730 mm
Y Axis Travel: 270 mm
Z Axis Travel: 330 mm
T Channel Dimensions: 3×18 mm
Shaft Connection: Vertical:ISO40 Horizontal:ISO40
Speed: Vertical: 90-2000 rpm Horizontal: 60-1350 rpm
Level: Vertical: 8 Horizontal: 12
Head Rotation Angle: ± 45°
Distance Between Spindle-Table: Vertical 95-495 mm, Horizontal:10-340 mm
Distance Between Shaft and Column: 220-560 mm
Table Feed: X,Y,Z: 15-370 mm/min (8 steps)
Table Feeding Motor: 0.75 kW
Machine Dimensions (LxWxH): 1680×1640×2200 mm
Net Weight: 1700 Kg
