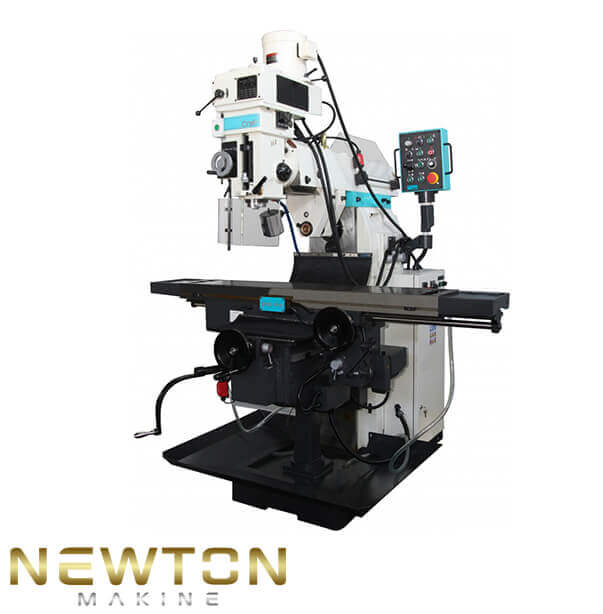

FR5 PRO Universal Die Milling Machine

Description

FR4 Universal molding milling machine has a durable body that can operate with vertical and horizontal motor power of 3.75 kW – 380 volts and has been produced in accordance with CE norms.

Technical Specifications
Motor Power: Vertical: 3.75 KW, Horizontal: 3.75 KW
Voltage: 400V (Three-phase)
Cooling Pump Power: 100 W
Table Dimensions: 1470×300 mm
X Axis Travel: 1130 mm
Y Axis Travel: 400 mm
Z Axis Travel: 450 mm
T Channel Dimensions: 3×16 mm
Shaft Connection: Vertical:ISO40 Horizontal:ISO40
Speed: Vertical: 75-3600 rpm Horizontal: 65-1500 rpm
Level: Vertical:16 Horizontal:9
Desk Diameter: 110 mm
Desk Movement: 140 mm
Desk Feed: 0.04 – 0.08 – 0.15 mm/rev
Head Rotation Angle: ± 45°
Distance Between Spindle and Table: 95-545 mm
Distance Between Shaft and Column: 190-690 mm
Table Feeding Motor: X:3/4 Hp ; YZ: 1/2Hp
Machine Dimensions (LxWxH): 1750x1620x2350 mm
Net Weight: 2350 Kg
