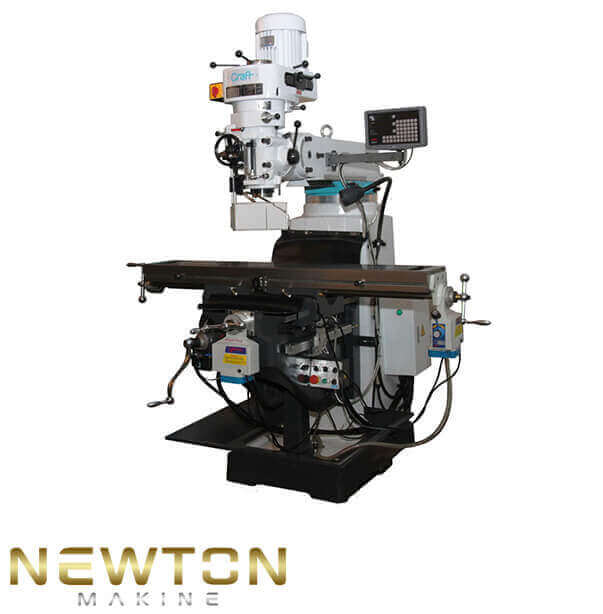

FR6 SERVO Universal Molding Milling Machine

Description

SERVO molding milling model with a rotation angle of 45 degrees provides maximum working opportunity with X-Axis movement of 1300 mm, Y-Axis movement of 420 mm, Z-Axis movement of 320 mm. The die milling machine with a table size of 1650×360 mm consists of 10 vertical and 12 horizontal stages. Produced in accordance with CE standards.

FR6 SERVO Universal Die Milling Machine Technical Specifications
Motor Power: Vertical: 5.5 KW, Horizontal: 5.5 KW
Cooling Pump Power: 90 W
Table Dimensions: 1650×360 mm
X Axis Travel: 1300 mm
Y Axis Travel: 320 mm
Z Axis Travel: 420 mm
T Channel Dimensions: 3×14 mm
Shaft Connection: Vertical:ISO40 Horizontal:ISO50
Speed: Vertical: 60-3600 rpm Horizontal: 58-1800 rpm
Level: Vertical: 10 Horizontal: 12
Disc Travel: 120 mm
Head Rotation Angle: ± 45°
Distance Between Spindle and Table: 0-450 mm
Distance Between Shaft and Column: 150-550 mm
Table Feed: X,Y: 25-800 mm/min, Z:8-267 mm/min
Table Serial Feed: X,Y: 1200 mm/min, Z:400 mm/min
Table Feeding Motor: 1.8 Kw, 11.5 N.m (Servo)
Machine Dimensions (LxWxH): 2070x1930x2250 mm
Net Weight: 2900 Kg
