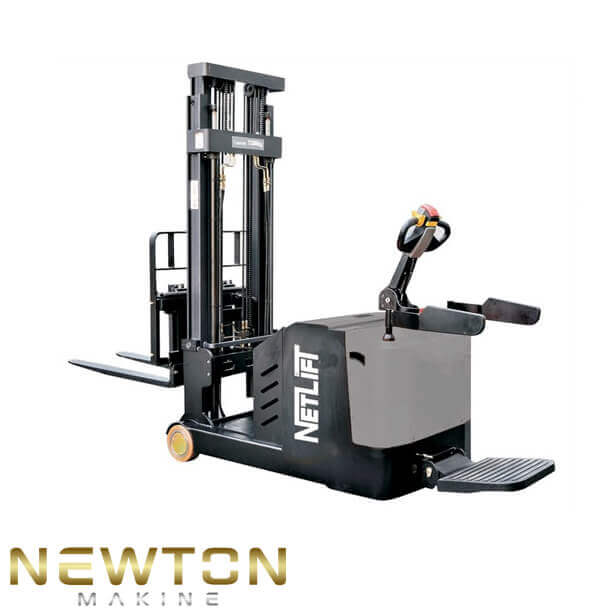

Manuel Forklift

Description

You can easily stack the products safely and quickly with the help of the light control handle.

Technical Specifications

Mast Type: Triplex
Drive Type: Electric
Usage: Standing
Lifting Capacity: 1500 kg
Load Center: 500 mm
Wheel Distance: 1270 mm
Weight (Excluding Battery): 1825 kg
Weight (Including Battery): 2000 kg
Wheel Type: PU
Front Wheel Dimensions: 210 mm
Walking Wheel Size: 230 mm
Number of Wheels: ½
Mast Closed Height: 1880 mm
Machine Length Including Platform: 3240 mm
Rear Body Width: 850 mm
Control Arm Height While Driving: 1030-1200 mm
Rear Body Height: 860 mm
Mast Open Height: 4960 mm
Lift Height: 4000 mm
Ground Clearance Minimum: 60 mm
Fork Length: 1070 mm
Outside Fork Width: 200-900 mm
Turning Radius: 1530 mm
Minimum Fork Height: 70 mm
Fork Thickness: 35 mm
Crack Width: 100 mm
Free Lift Height: 2026 mm
Walking Speed: 5/5.3 km/h
Lifting Speed: 108/147 mm/s
Descent Speed: 145/80 mm/s
Climbing Ability: 5/7 degrees
Travel Motor: 1.5 kW
Lifting Motor: 2.2 kW
Battery Voltage/Capacity: 24/280 v/ah
Battery Weight: 210 kg
Battery Size: 790 x 210 x 576 mm
Brake Type: Electromagnetic
Control System: 1230-2402 Curtis
