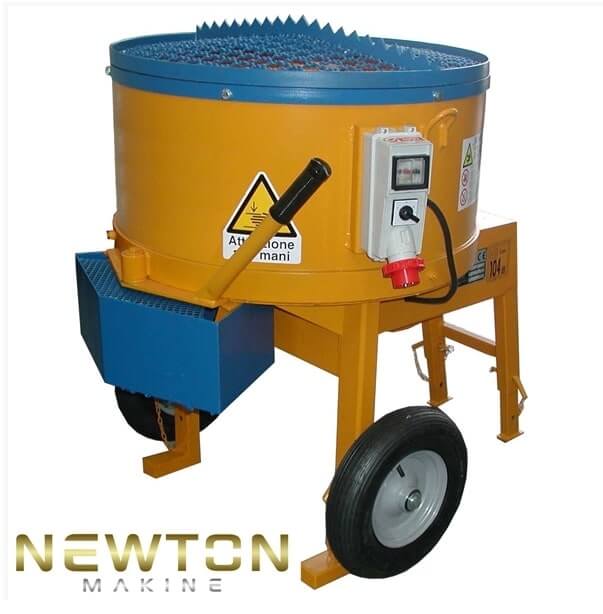

Pan Mixer

Description

Pan mixers are using for prepare concrete samples and mixtures provide a fast and homogeneous mixture. It is for easy and practical usage areas.

The concrete mixture is mixed in this chamber by turning it clockwise. When it rotates in the opposite direction, it discharges the completed material.

The stirrer and paddle are height-adjustable and made of wear-resistant special quality steel.

Technical specifications

Type: NWKM 125 Lt – 250 Lt – 350 Lt – 500 Lt
Length : 90 cm – 100 cm – 120 cm – 150 cm
Width: 90 cm – 100 cm – 120 cm – 150 cm
Height: 130 cm – 150 cm – 165 cm – 165 cm
Weight : 150 kg – 275 kg – 375 kg – 450 kg
Mixing Volume: 100 Lt – 220 Lt – 300 Lt – 450 Lt
Mixing Capacity: 50-200 Lt/min
Engine Speed: 36rpm
Electric: 2.2 KW 3 HP Three-Phase
4 KW 5.5 HP Three-Phase
7.5 KW 10 HP Three-Phase
