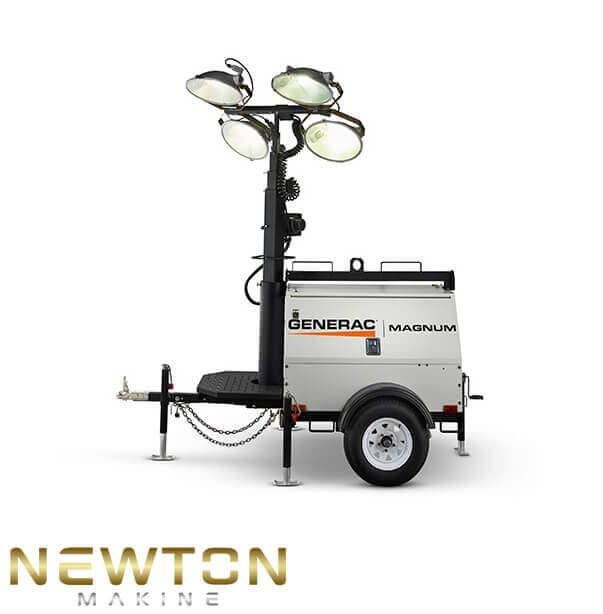

Telescopic Lighting Tower

Description

Telescopic lighting tower provides convenience to its users with its mobile feature that can quickly respond to temporary lighting needs.

Telescopic light tower consists of 5-stage special profile (wedge channel) honed pipes. The movement of the lifts is provided by hydraulic pressure. The fully extended lift raises the lamps to a height of 9.5 meters. The energy cable required for movement and lamps was moves up when the MAST is up.

Telescopic Lighting (light) Tower Technical Specifications

DIESEL ENGINE FEATURES
Brand: YAVUZ MOTOR (Made in Turkey)
Model: 3104G (Electrogen type motor)
First Movement: Mars Motor
Electrical System: 12 Volt DC
Charging System: With Alternator
Cylinder Quantity: 3 Cylinders, Water Cooled
Cylinder Diameter: 104 mm.
Cylinder Displacement: 2930 cm³
Stroke: 115 mm.
Compression ratio: 17:1
RPM / HP: 1500 RPM – 44 HP Max.
Fuel Consumption: 163 gr/Hp hour
Oil Sump volume: 8.5 Lt.
Diesel Tank: 82 Liters

ALTERNATOR FEATURES:
Brand: NRL32 (Made in Turkey)
Power: 32 KVA Three Phase
Voltage: 220 / 380 Volts, 3×48 Amps
Frequency Cycle: 50 Hz. 1500 RPM.
Alternator Type: Synchronous Tempered Wound, Brushless Excited
Insulation/Protection: Class H insulation / IP 23 protection factor
Warning Type: Self-Excited, Electronic Regulator
Mounting Type: Monoblock Coupled, Single Bed
